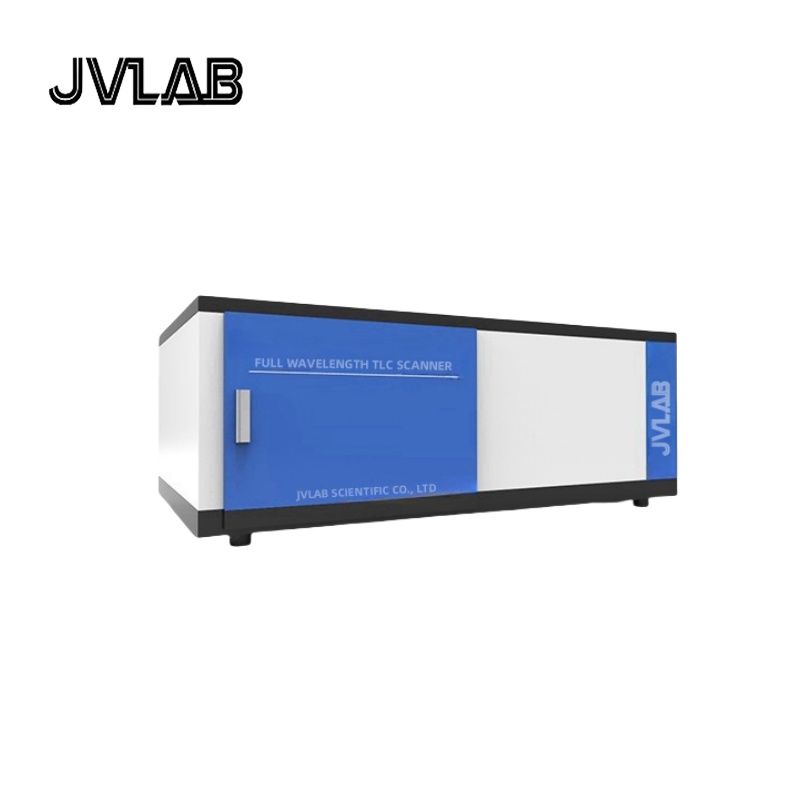

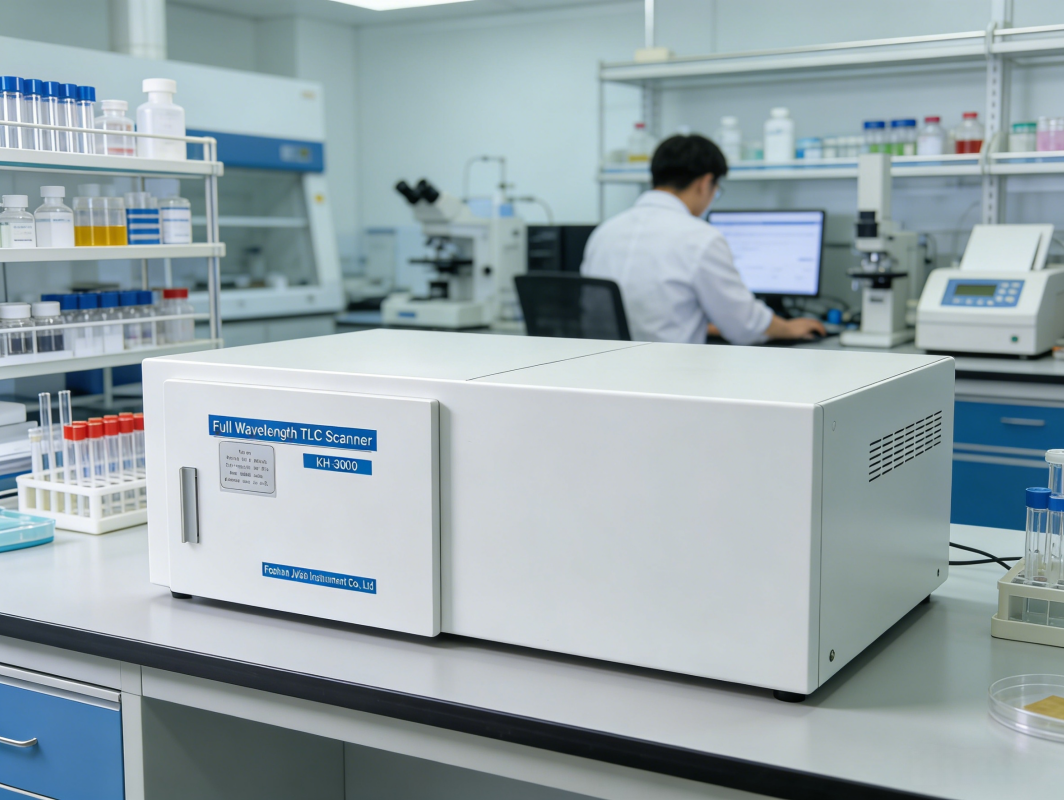

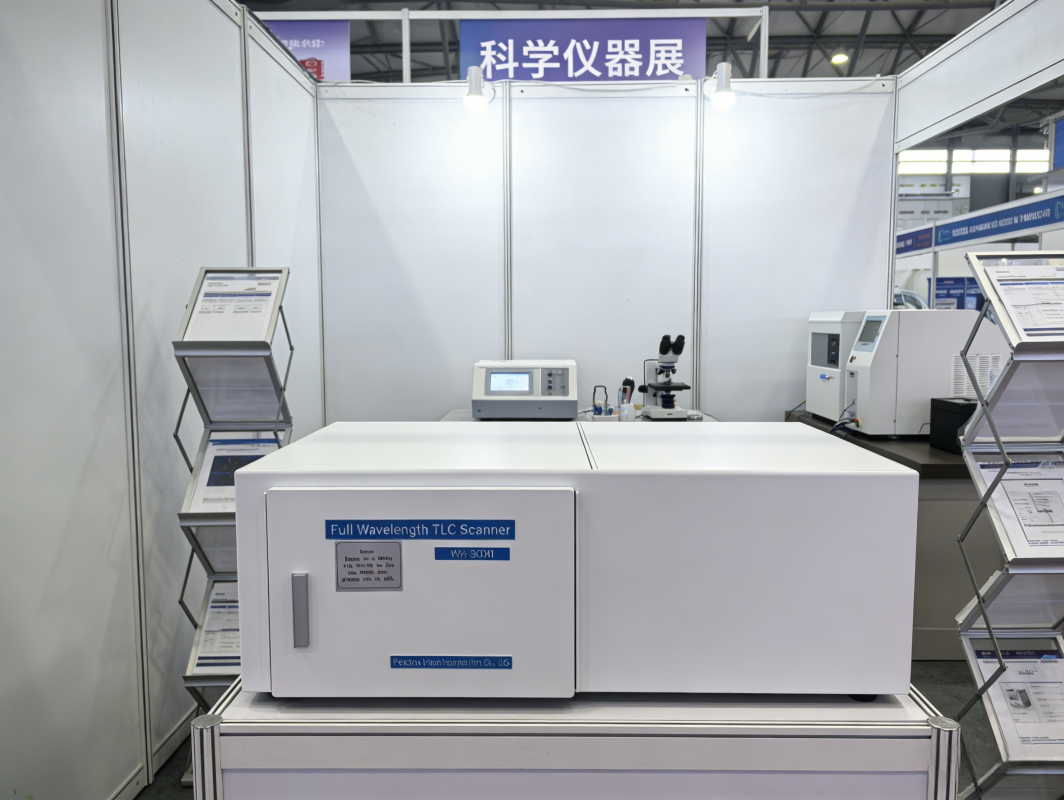

Full Wavelength TLC Scanner KH-3000

Feature

1. Automatic light source energy calibration to replace low energy light sources.
2. Automatically calibrate the grating monochromator to maintain wavelength accuracy.
3. Automatic switching between deuterium lamp and halogen tungsten lamp.
4. Equipped with UV spectral scanning function, it can analyze unknown substances and optimize scanning wavelength.
5. USB data transmission, with large data transmission volume and fast transmission speed.
6. The workstation has powerful performance, fully computer-controlled instruments, and a high degree of automation.
7. The light source can provide a continuous UV visible spectrum of 200nm~850nm, with a wide wavelength range.
8. The monochromator uses 1200 holographic gratings/mm, with high resolution and spectral purity.
9. The workstation can be managed by methods and operators, meeting GMP/GLP requirements.
10. The workstation has preset quantitative analysis methods for traditional Chinese medicine in versions 2000, 2005, 2010, and 2015, which are available for immediate use.

Main advantages

1. The quality is in sync with the world, and the price is lower than that of European and Japanese products, with a very high performance to price ratio.
2. Fast scanning speed and accurate quantification.
3. Fully functional, research quality control is acceptable, and after-sales service is simple.
4. Highly automated, highly operable, and easy to operate.

Instrument composition

1. Host (including light source, grating monochromator, mobile platform, USB serial port).
2. Tstar 3000 professional thin layer chromatography workstation.

Main Parameter

1. Measurement method: absorption method, fluorescence method (optional).
2. Spectral range: 200nm~850nm (continuously adjustable).
3. Light source: halogen tungsten lamp, deuterium lamp (automatic switching).
4. Monochrome: holographic grating (1200 lines/mm).
5. Spectral bandwidth: 10nm.
6. Wavelength accuracy: ± 1nm.
7. Minimum resolution: 25-50 μ M.
8. Measurement platform: can accommodate 200mm × 200mm chromatographic plate.
9. Scanning speed: 0-120mm/s.
10. Operating system: WIN7 32-bit/WIN10 64-bit.
11. Power interface: USB interface 220V 300W.

Application

Mainly used for modern quality control of traditional Chinese medicine and research and development of new Chinese medicine drugs.

1. Chinese herbal medicine

Panax notoginseng, Shandou root, Cornus officinalis, Ligustrum lucidum, Niuhuang, LMZ, Angelica, Andrographis paniculata, Huanglian, Astragalus membranaceus, Fructus cnidii, Bitter gall, etc.

2. Traditional Chinese patent medicines and simple preparations

Liuwei Dihuang Pills, Liuwei Dihuang Granules, Hawthorn Pills, Huanglian Shangqing Pills, Huanglian Pills, Zhibai Dihuang Pills, Daochi Pills, Xiaoyin Tablets, Jiudispersed Pills, Mingmu Dihuang Pills, Huodan Pills, Sanmiao Pills, Erzhi Pills, Ermiao Pills, Xianglian Tablets, Chuanxinlian Tablets, Naodesheng Tablets, Qingfei Xiaoyan Pills, Gegen Qinlian Pellets, etc.

3. Biochemical drugs

Aspergillus toxin, macrolides, proteins, antibiotics, pigments, nucleic acids, enzymes.
