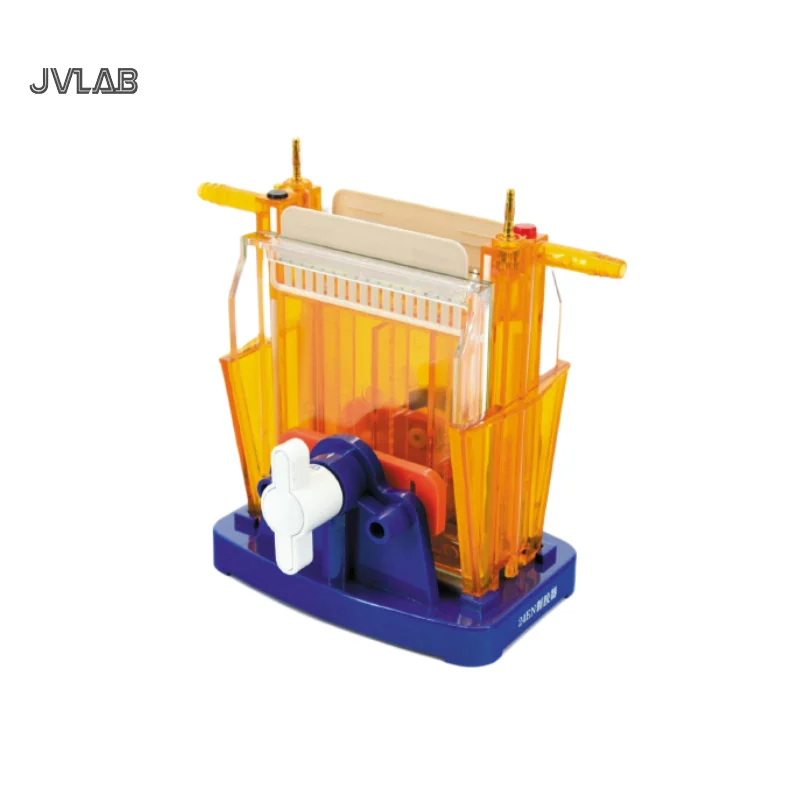

Vertical Middle Gel Protein Electrophoresis Cell
JVLAB Gel Electrophoresis Cell is a delicate, simple and easy to use system. It is manufactured from high acrylic with platinum electrodes. Its seamless, injection-molded transparent base prevents leakage and breakage. This system is very safe for the users. Its power source will be turned off when user opens the lid. The special lid design avoids making mistakes.
Features:
* Made of high quality transparent polycarbonate, exquisite and durable, easy for observation.
* With a gel casting in original position, able to cast and run the gel at the same place, simple and convenient to make gels, and save your precious time.
* Special wedge frame design can fix gel room firmly.
* Molded buffer tank equipped pure platinum electrodes.
* Easy and convenient to add samples.
* Able to run one gel or two gels at the same time.
* Save buffer solution.
* Special design of the tank avoid buffer and gel leakage.
* Removable electrodes, easy to maintain and clean.
* Auto-switch-off when the lid is opened.
* Built-in heat exchanger can eliminate the heat produced during the running.
Specifications:
Gel dimension(L×W): 130×100 mm.
Comb: 12 wells and 16 wells
Number of Samples: 24-32
Comb thickness: 1.0 mm and 1.5 mm .
Fuffer volume: 1200ml.
Dimension (L×W×H): 210×120×220 mm.
Weight: about 2.0 kgs.
Applications:
For SDS-PAGE, Native PAGE electrophoresis and two-diamensional gel electrophoresis
