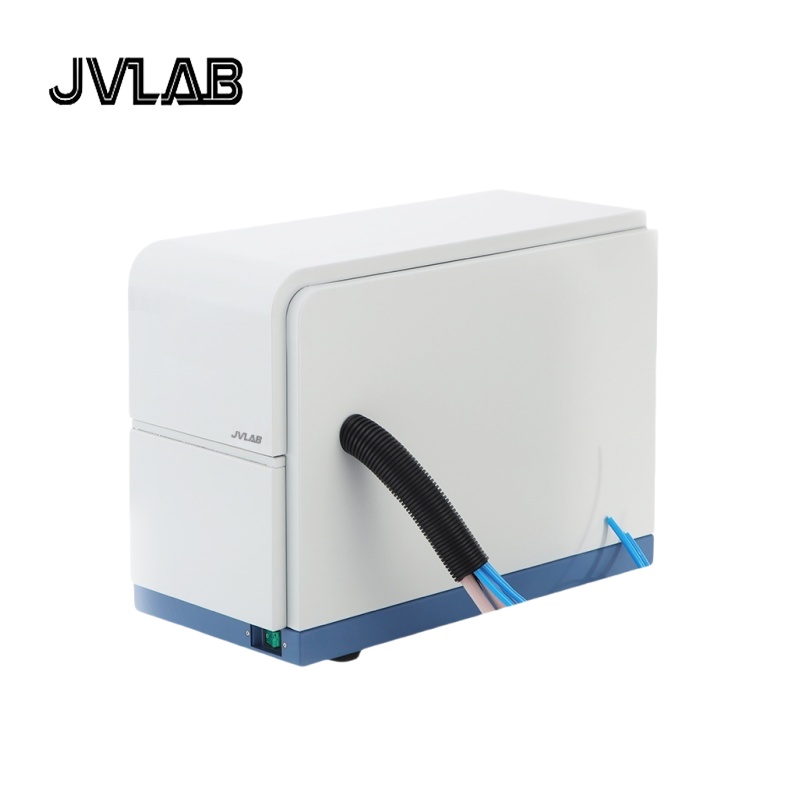

Graphite Furnace 4510GF

The JVLAB 4510GF graphite furnace is used for atomic absorption analysis in flameless heating mode and is an important supporting equipment for the 4510F atomic absorption spectrophotometer. It is an instrument specifically designed for the determination of trace metal elements. It injects the tested sample into a graphite tube and, under inert gas protection, heats it at different temperatures to remove moisture from the sample during the drying stage, remove matrix interference during the ashing stage, without losing the content of the tested element in the original sample. The atomization stage fully atomizes the tested element in the sample, allowing for sensitive and accurate determination of its content. The residual sample left in the graphite tube is removed during the high-temperature cleaning stage.

Main functions and technical indicators:

• Capable of protecting the gas path:

1. a) Control the opening and closing of two protective gases inside and outside the graphite tube;
2. b) Capable of regulating the flow rate of inert protective gas inside graphite tubes

• Equipped with alarm function:

1. a) Equipped with an alarm function for insufficient inert gas pressure, capable of stopping program execution;
2. b) Equipped with furnace overheating alarm function:

• Equipped with high-power heating function: (1500 ℃~3000 ℃)
• Equipped with manual heating function: (1000 ℃~3000 ℃)
• Protective gas: argon gas (purity above 99.99%, inlet pressure ≥ 0.25MPa)
• Cooling water: Clean water source flow rate not less than 2L/min
• Display mode: The graphite furnace interface is displayed by the host workstation
• Communication port: RS-232
• Heating steps: 20 steps
• Nominal temperature: 20 ℃~3000 ℃
• Slope heating time 0s~999s
• Maintain heating time: 1s~999s (the sum of slope heating time and holding heating time should not exceed 999s)
• Measurement repeatability ≤ 3% (Cu)
• Detection limit: Cd ≤ 1.0 × 10-12g
• When the background attenuation signal is 1Abs, the product has more than 50 times the background correction capability
• Linear error: Cd ≤ 15%
• Power supply: AC220V ± 22V, 50Hz, 30A, 6600W
• Dimension: 570 × 280 × 440 mm
• Net weight: 60kg
