DM1424
Hematocrit Centrifuge
Hematocrit centrifuge with AC24 hematocrit rotor is used for determination of volume fractions of erythrocytes in blood for diagnostic purposes and doping tests. Also it is used for the photometric determination of bilirubin content in neonate blood samples. Hematocrit centrifuge with A24-2P tube rotor, can be used for extraction of DNA and RNA.
Features
Speed range of 200-14000rpm, max. RCF 18620×g.
Precise control of speed and time separately.

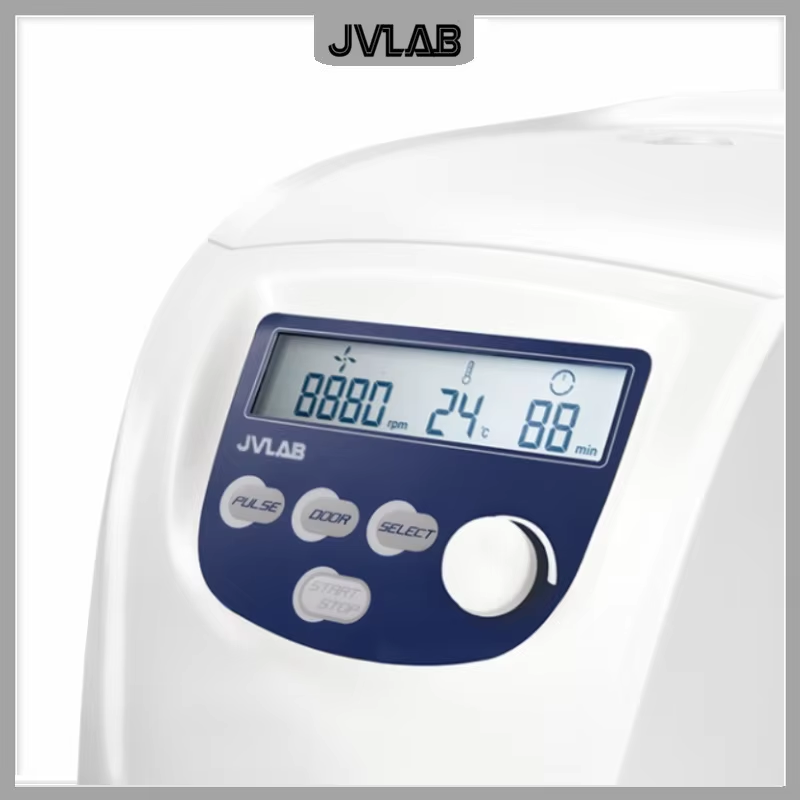

Easy operation with intuitive menu and easy-to-read display.
Maintenance-free brushless DC motors.
Pulse operation for quick spins.

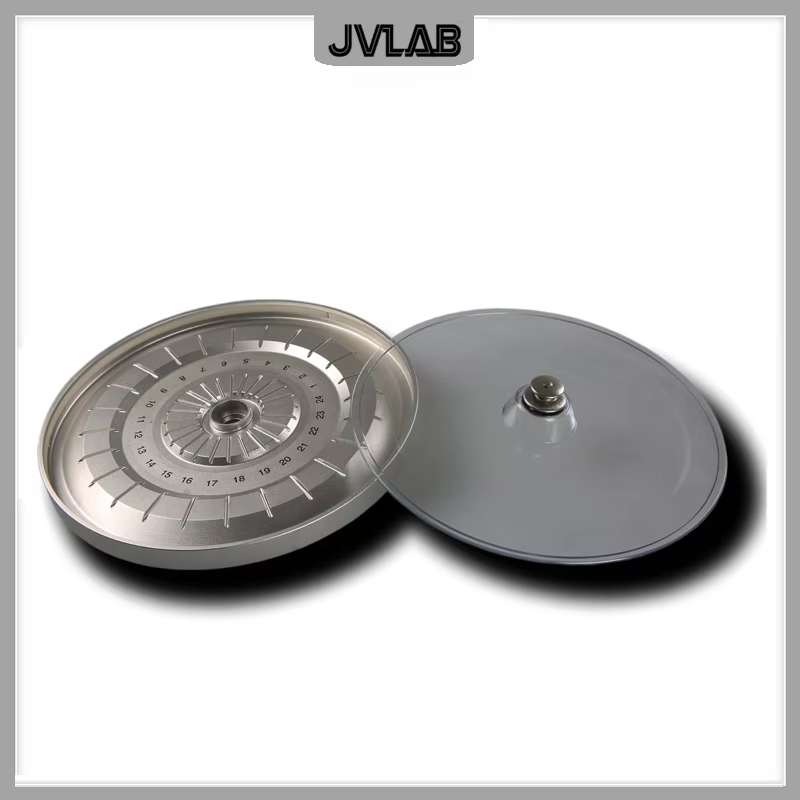

Rotor capacity: Hematocrit rotor:
Hematocrit rotor:24 capillary max. speed:12000rpm.
Tube rotor: 1.5/2mL×24 max. speed: 14000rpm.
Parameter
Specifications: DM1424
Max. Speed: 200-14000rpm,
increment: 10rpm
Max. RCF: 18620×g
Speed Accuracy: ±20 rpm
Rotor Capacity: 2 type
Run Time: 30sec-99min/Continuous
Motor: Brushless DC motor
Display: LCD
Safety Devices: Door interlock,Overspeed detector;Over-temperature detector, Automatic internal diagnosis, Automatic rotor identification
Power: Single-phase, 220V-240V,50Hz/60Hz, 5A;110V-120V,50Hz/60Hz, 5A 500W
Acceleration/Braking time [Sec]: 30s↑30s↓
Dimension [D×W×H]: 280×364×266mm
Weight: 10kg
Certification: CE cTÜVus FCC MCA
Advanced Features: Speed/RCF switch; Short-time run function; sound-alert function
