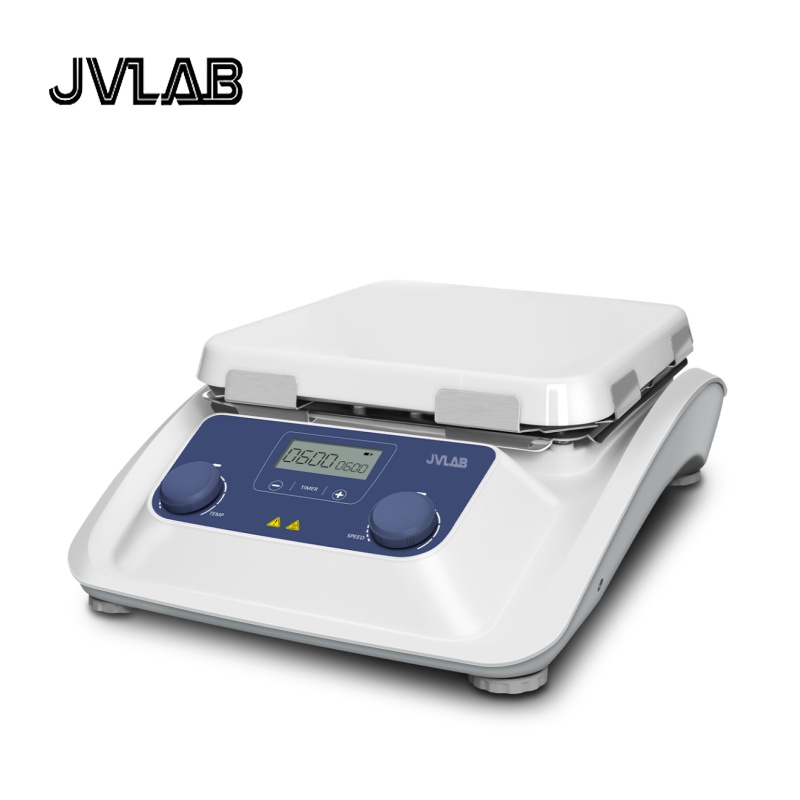

JS10-H500-Pro
LCD Digital Magnetic Hotplate Stirrer With 10 Inch Ceramic Plate
Features
Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring.
Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer.
LCD display for precise monitoring of speed and temperature . External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at±0.2°C.
Digital speed control of 100 ~ 1500rpm.
Max. heating plate temperature 500℃.
The "HOT" warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off.
Data connector : The SD card also records the instrument's running data in real time.
Timing function: the running time of the instrument can be set.
Main parameter
Work plate Dimension [W x D]: 254x254mm(10inch)
Work plate material: Glass ceramic
Motor type: Brushless DC motor
Stirring positions: 1
Max. stirring quantity, [H2O]: 30L
Max. magnetic bar[length]: 80mm
Speed range: 100-1500rpm resolution±1rpm
Speed,time, Temperature display: LCD
Timer function: 1min-99h59min
Heating temperature range: Room Temp.-500℃, increment1℃
Temperature control accuracy: ±1℃ (<100℃), ±1%(>100℃)
Overheating protection:540℃
Temperature display accuracy: ±0.1℃
External temperature sensor: PT1000(±0.2℃)
"Hot" warning: 50℃
Data connector: SD card
Protection class: IP21
Power: 1400W
Heating output: 1350W
Voltage Frequency: 100-120/200-240V 50/60Hz
Dimension [WxDxH]: 328x424x138mm
Weight: 7.18kg
Permissible ambient temperature and humidity: 5-40℃, 80%RH
