MS7-H550-S
LED Magnetic Hotplate Stirrer
JVLAB 550°C series magnetic stirrer is developed for demanding applications. It is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc. Combining with glass ceramic work plate, brushless DC motor and external temperature sensor, the work plate temperature is optimized up to 550°C.
Features

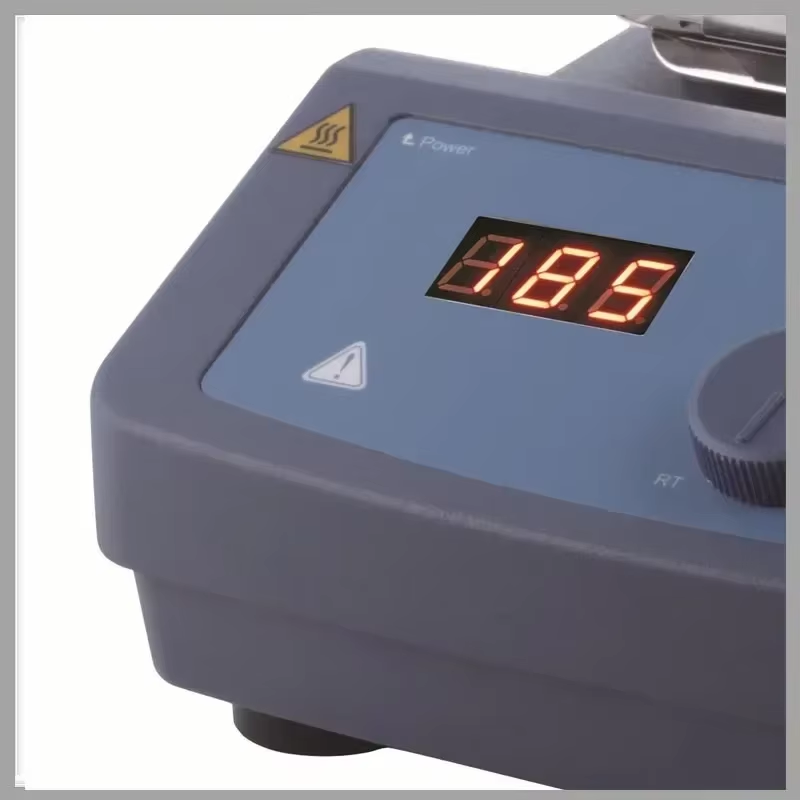

* LED display for precise monitoring of temperature.
* A wide speed range of 0 to 1500rpm.
* Max. Heating plate temperature 550°C.

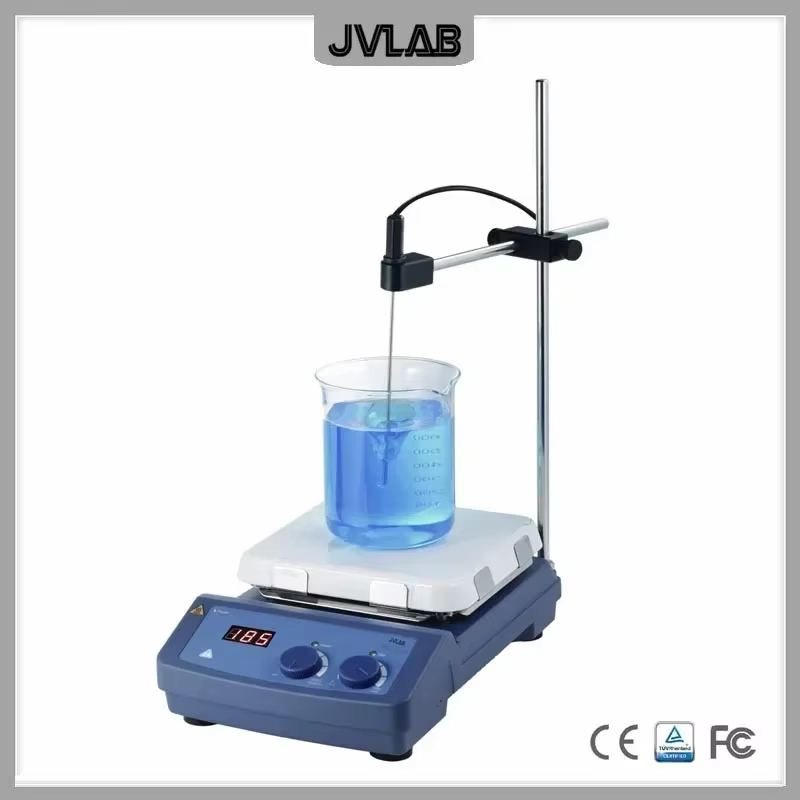

* External temperature control is possible by connecting the temperature sensor (PT1000) with accuracy at ±0.2°C.
* The "HOT" warning will flash if the work plate temperature is above 50°C.
Main parameter

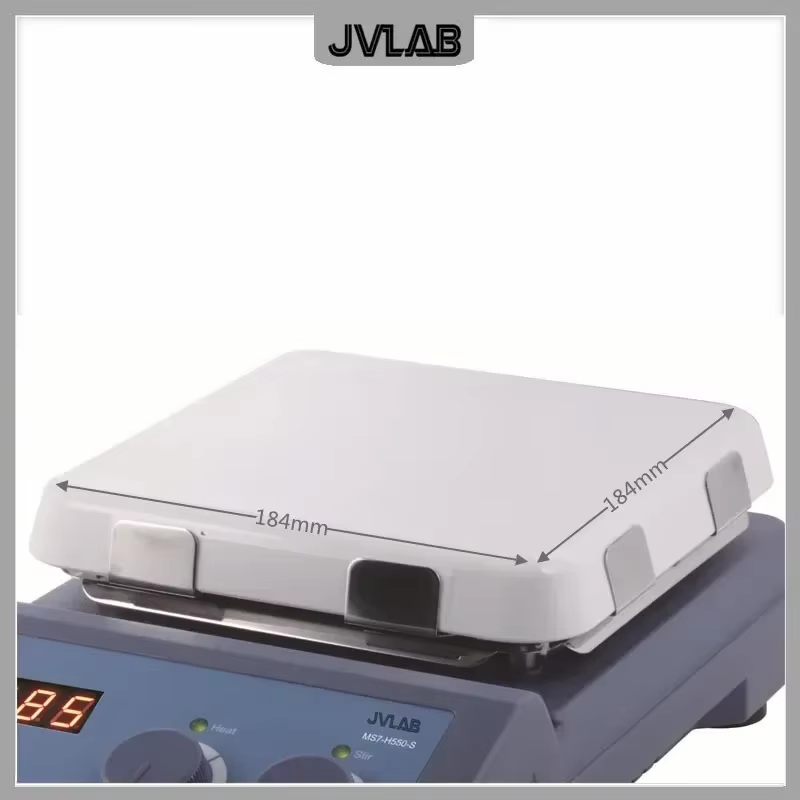

Work plate Dimension [W x D]: 184x184mm (7 inch)
Work plate material: Glass ceramic
Motor type: Shaded pole motor
Motor rating input: 15W
Motor rating output: 1.5W
Power: 1030W
Heating output: 1000W
Voltage: 100-120/200-240V 50/60Hz
Stirring positions: 1
Max. stirring quantity, [H2O]: 10L
Max. magnetic bar[length]: 80mm
Speed range: 0-1500rpm
Speed display: Scale
Temperature display: LED
Heating temperature range: Room temp.-550°C, increment 5°C
Temperature control accuracy: ±10°C
Overheating protection: 580°C
Temperature display accuracy: ±1°C
External temperature sensor: PT1000 (accuracy ±0.2)
"Hot" warning: 50°C
Protection class: IP21
Dimension [WxDxH]: 215x360x112mm
Weight: 4.5kg
Permissible ambient temperature and humidity: 5-40°C, 80%RH
