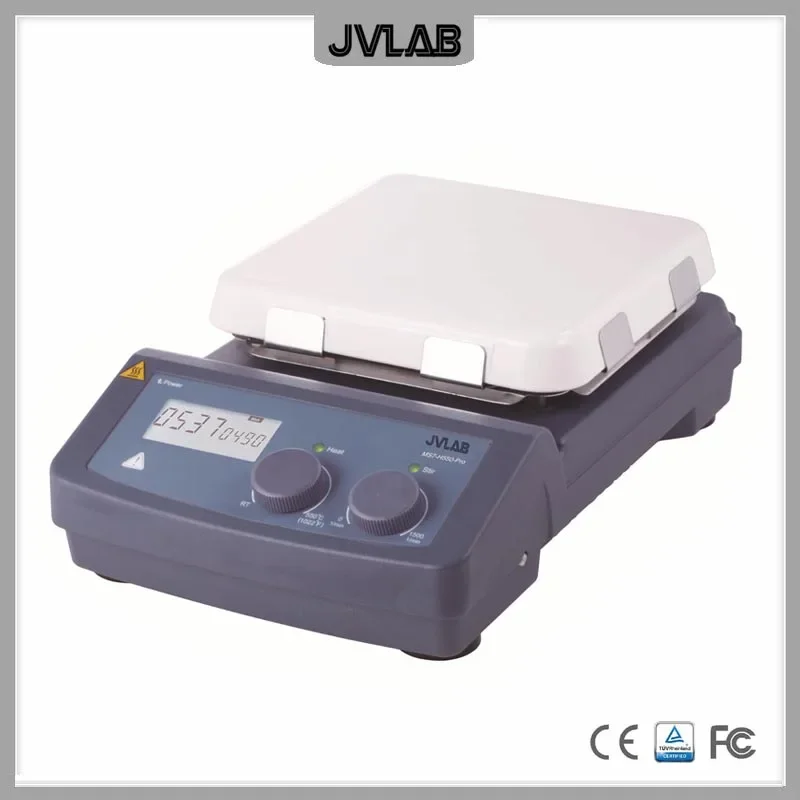

MS7-H550-Pro
LCD Digital Magnetic Hotplate Stirrer
JVLAB 550°C series magnetic stirrer is developed for demanding applications. It is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc. Combining with glass ceramic work plate, brushless DC motor and external temperature sensor, the work plate temperature is optimized up to 550°C.
Features
LCD display for precise monitoring of speed and temperature.
Built-in PID controller ensures safe heating of the medium with overheating protection.
Max. heating plate temperature 550°C.
Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer.

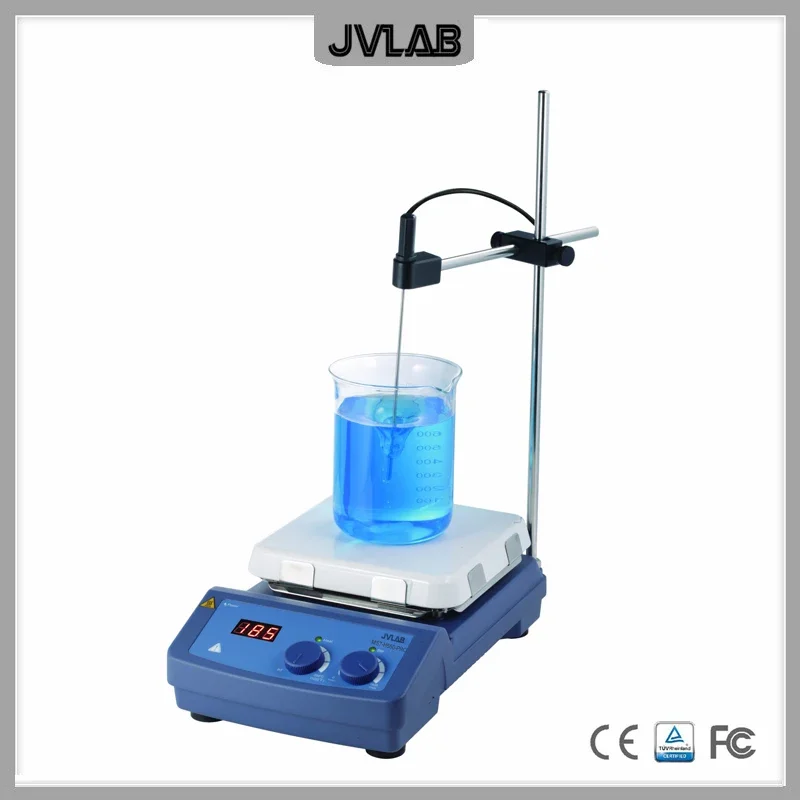

External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2°C.
Digital speed controlling, max. speed at 1500rpm.
Outstanding brushless DC motor enables more stirring power.

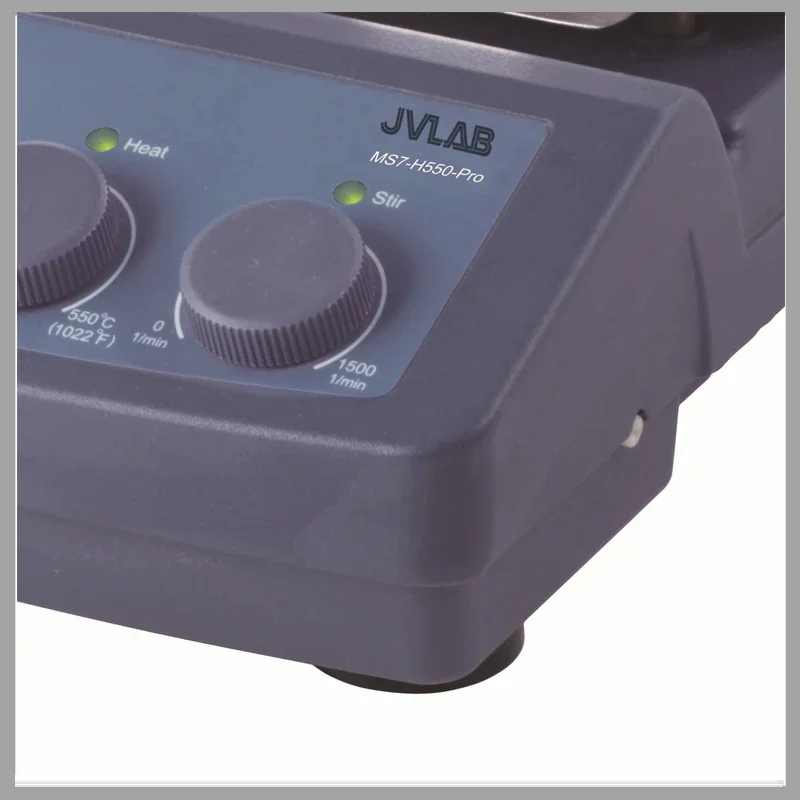

Two rotating knobs enable easy adjustment of speed and temperature.
The "HOT" warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off.
Remote function provides PC control and data transmission.
Main Parameter
Work plate Dimension [W x D]: 184x184mm (7 inch)
Work plate material: Glass ceramic
Motor type: Brushless DC motor
Motor rating input: 18W
Motor rating output: 10W
Power: 1050W
Heating output: 1000W
Voltage: 100-120/200-240V 50/60Hz
Stirring positions: 1
Max. stirring quantity, [H2O]: 20L
Max. magnetic bar[length]: 80mm
Speed range: 0-1500rpm
resolution: ±1rpm
Speed display: LCD
Temperature display: LCD
Heating temperature range: Room Temp.-550°C,increment 1°C
Temperature control accuracy: ±1 °C (<100°C) ±1%(>100°C)
Overheating protection: 580°C
Temperature display accuracy: ±0.1°C
External temperature sensor: PT1000 (accuracy ±0.2)
"Hot" warning: 50°C
Data connector: RS232
Protection class IP21
Dimension [WxDxH]: 215x360x112mm
Weight: 5.3kg
Permissible ambient temperature and humidity:5-40°C, 80%RH
