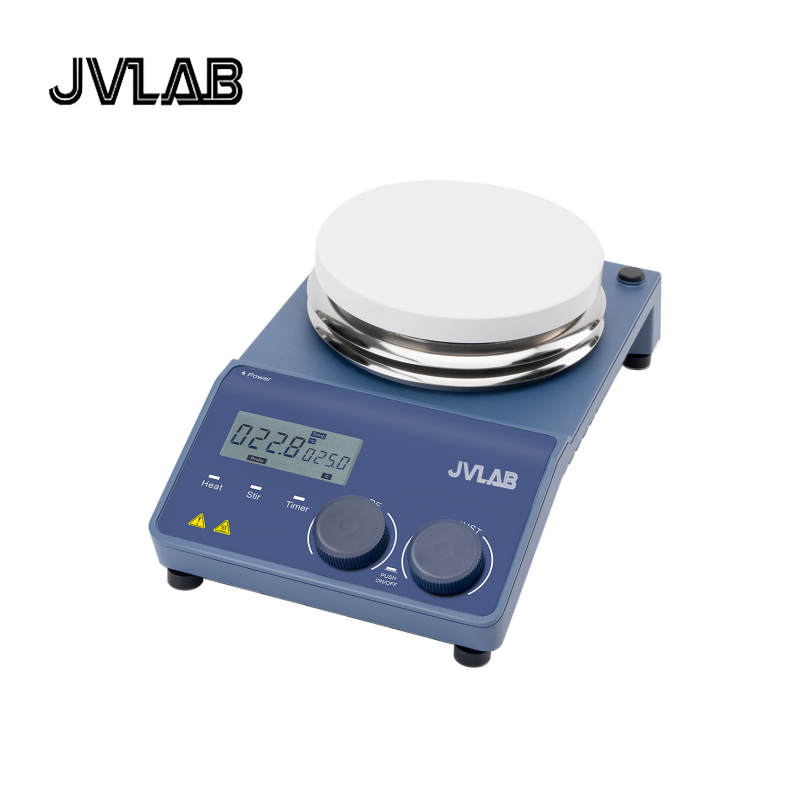

MS-H-Pro +
LCD Digital Magnetic Hotplate Stirrer
JVLAB 340°C serial magnetic stirrer include all leading safety standards and features for superior ease of use and are cost-effective. They are widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals, etc.
Features
Brushless DC motor is maintenance free and explosion-proof.
Digital temperature control with max. temperature at 340°C.
Digital speed control with max. speed up to 1500rpm.
Max. stirring quantity of H2O at 20L.
Safety circuits provide overheating protection.
The "HOT" warning will flash if the plate temperature is above 50°C even when the hotplate is turned off.
High-resolution LCD display shows actual temperatures andspeed.
External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C.
Stainless steel work plate with ceramic coating provides good chemical-resistant performance.
Remote function provides PC control and data transmission.
A wide variety of accessories are available.
Technical parameter:
Work plate dimension: φ135mm(5 inch)
Work plate material: stainless steel cover with ceramic
Motor type: Brushless DC motor
Motor rating input: 18W
Motor rating output: 10W
Power: 550W
Heating output: 500W
Voltage: 100-120/200-240V 50/60Hz
Stirring positions: 1
Max. stirring quantity[H2O]: 20L
Max. magnetic bar[length]: 80mm
Speed range: 100-1500rpm, resolution±1rpm
Speed display: LCD
Temperature display: LCD
Heating temperature range: Room temp.-340°C, increment 1°C
Temperature control accuracy: ±1°C(<100°C), ±1%(>100°C)
Over temperature protection: 360°C
Temperature display accuracy: ±0.1°C
External temperature sensor: PT1000 (accuracy ±0.2)
"Hot" warning: 50°C
Data connector: RS232
Protection class: IP42
Dimension[WxDxH]: 160×280×85mm
Weight: 2.8kg
Permissible ambient temperature and humidity: 5-40°C, 80%RH
