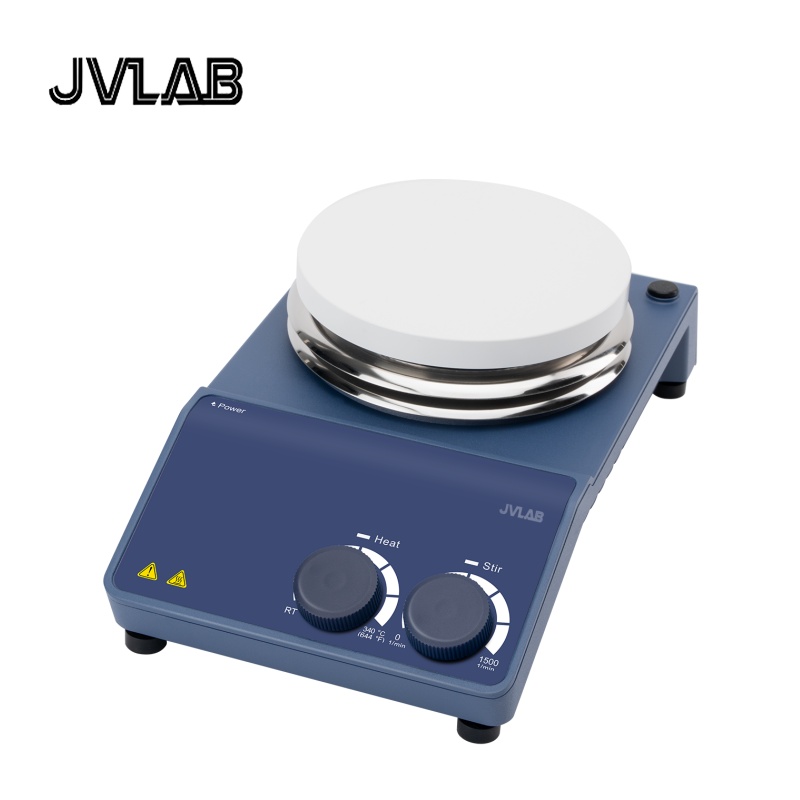

MS-H-S
Magnetic Hotplate Stirrer With Timer
JVLAB 340°C serial magnetic stirrer include all leading safety standards and features for superior ease of use and are cost-effective. They are widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals, etc.
Features
Maintenance free brushless DC motor.
Max. temperature to 340°C.
Stirring speed up to 1500 rpm.
Stainless steel work plate with ceramic coating provides good chemical-resistant performance.
Safety circuits provide overheating protection.
A wide variety of accessories are available.
Main Parameter
Work plate dimension: φ135mm(5 inch)
Work plate material: stainless steel cover with ceramic
Motor type: Brushless DC motor
Motor rating input: 18W
Motor rating output: 10W
Power: 550W
Heating output: 500W
Voltage: 100-120/200-240V 50/60Hz
Stirring positions: 1
Max. stirring quantity[H2O]: 20L
Max. magnetic bar[length]: 80mm
Speed range: 100-1500rpm, resolution±1rpm
Speed display: Scale
Temperature display: Scale
Heating temperature range: Room temp.-340°C
Over temperature protection: 350°C
Temperature display accuracy: ±0.5°C
Protection class: IP42
Dimension[WxDxH]: 160×280×85mm
Weight: 2.8kg
Permissible ambient temperature and humidity: 5-40°C, 80%RH
