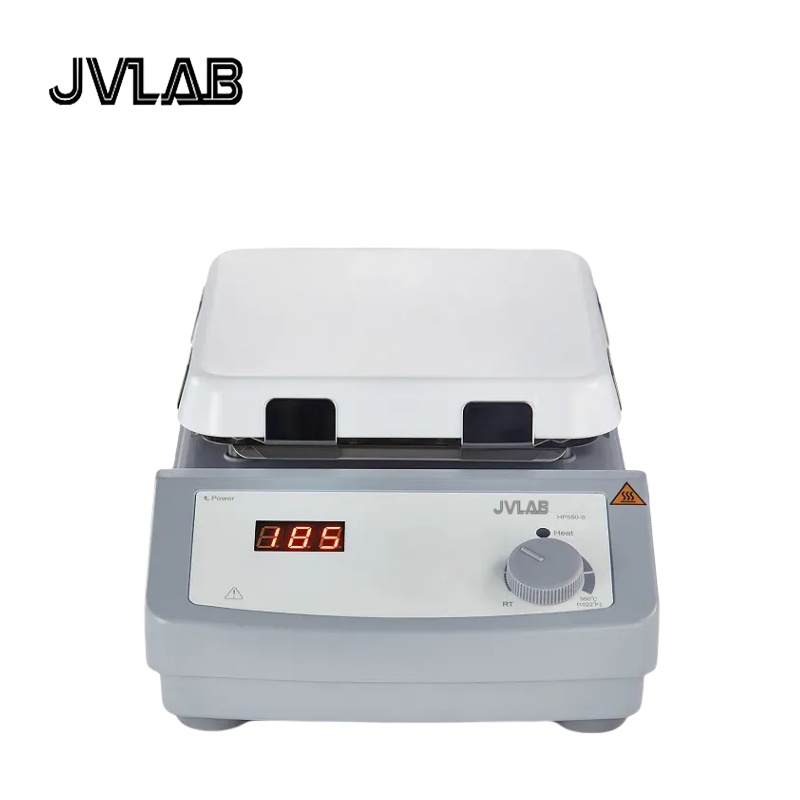

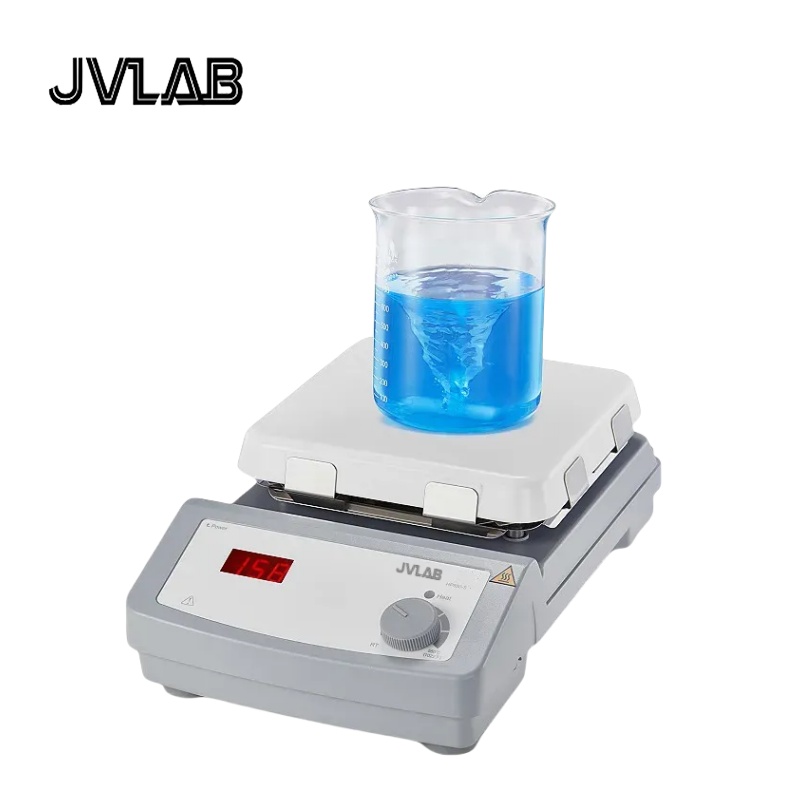

HP550-S
LED Hotplate
Features
LED screen shows temperature.
Max. temperature up to 550°C.
Separate safety circuits with fixed safety temperature of 580°C.
External temperature control is possible by connecting the temperature sensor(PT 1000) with an accuracy at ±0.5°C.
Glass ceramic work plate provides excellent chemical-resistant performance and most efficient heat transfer.
The "HOT" warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off.
|
Work plate Dimension |
184x184mm(7 inch) |
|
Work plate material |
Glass ceramic |
|
Power |
1010W |
|
Heating Power |
1000W |
|
Voltage |
100-120/200-240V,50/60Hz |
|
Heating position |
1 |
|
Heating temperature range |
Room temp.-550°C,increment 5°C |
|
Control accuracy of work plate |
±10°C |
|
Safety temperature |
580°C |
|
Temperature display |
LED |
|
Temperature display accuracy |
±1°C |
|
External temperature sensor |
PT1000(±0.5°C) |
|
Heating warning |
50°C |
|
Protection class |
IP21 |
|
Dimension [W x D x H] |
215x360x112mm |
|
Weight |
4.5kg |
|
Permissible ambient temperature and humidity |
5-40°C, 80%RH |
