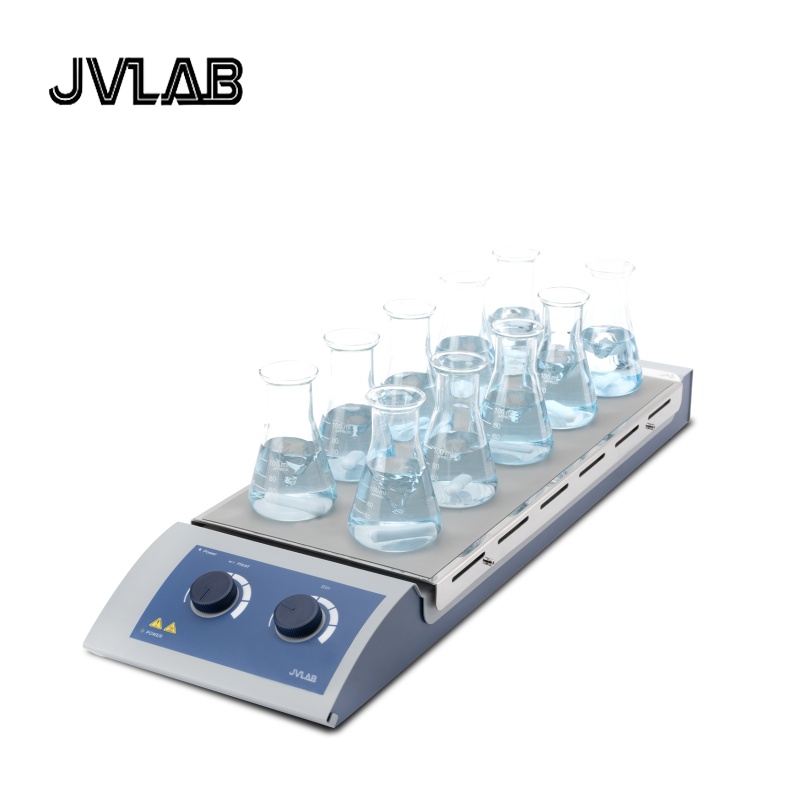

MS-H-S10
10-Position Magnetic Hotplate Stirrer
Features
Maintenance-free brushless DC motor.
Max speed 1100rpm.
Max.temperature 120°C.
Stainless steel work plate, covered with silicone cushion, provides the excellent performance of heating uniformity and skid resistance.
Parameter
Work plate Dimension: 180×450mm
Work plate material: Stainless steel with silicone
Motor type: Brushless DC motor
Motor rating input: 12W
Motor rating output: 4W
Power: 490W
Heating output: 470W
Voltage: 100-120/200-240V, 50/60Hz
Stirring positions: 10
Max. stirring quantity[H2O]: 0.4L×10
Max. magnetic bar[length]: 40mm
Speed range: 0-1100rpm
Speed display: scale
Temperature display: scale
Heating temperature range: Room temp.-120°C
Over heat Protection: 140°C
IP protection class: IP20
Dimension [W x D x H]: 182×622×65mm
Weight: 3.2kg
Permissible ambient temperature and humidity: 5-40℃ 80%RH
