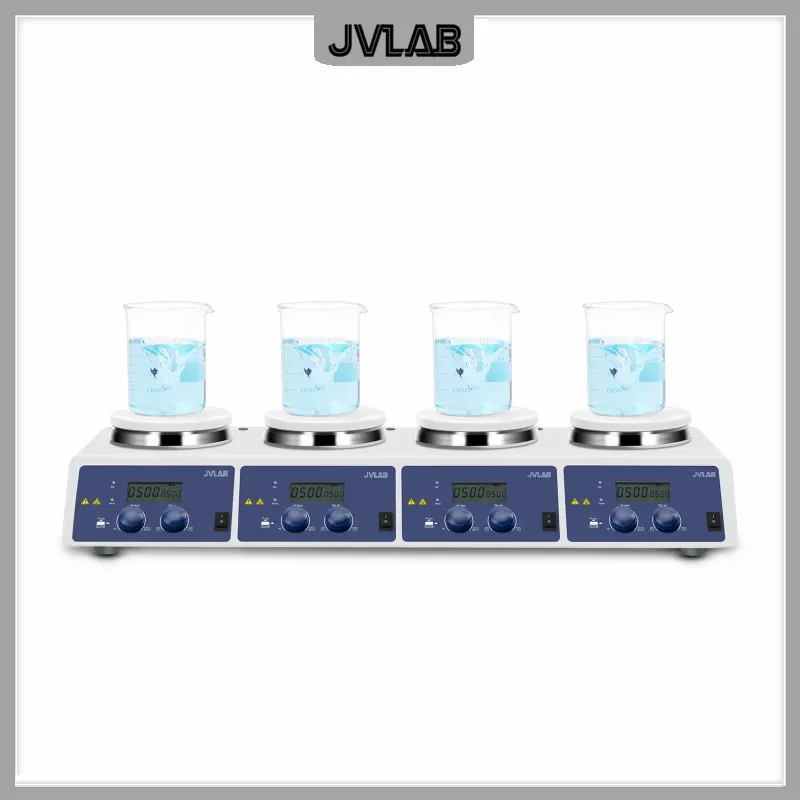

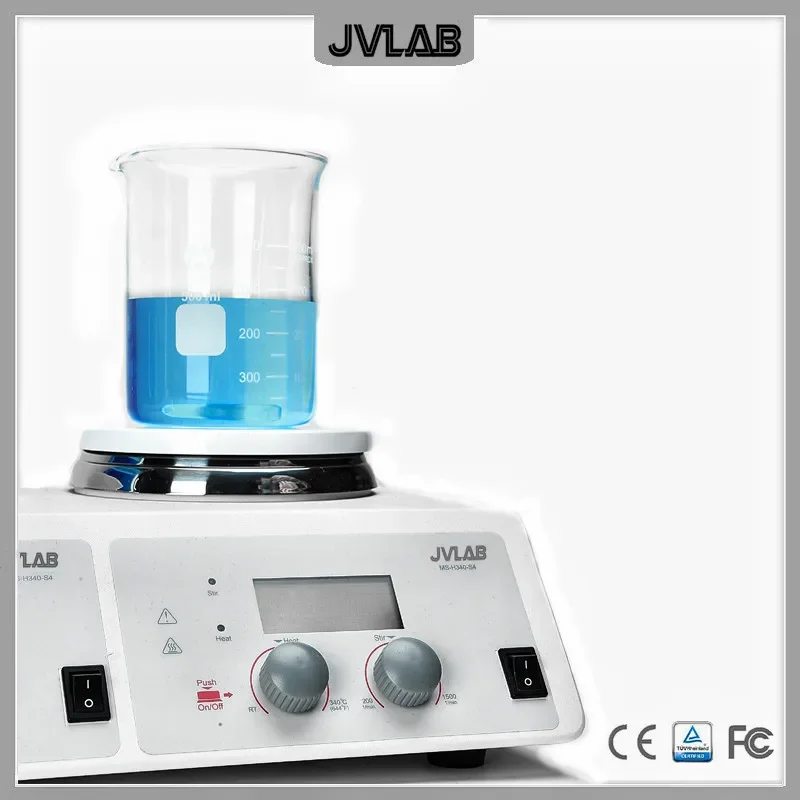

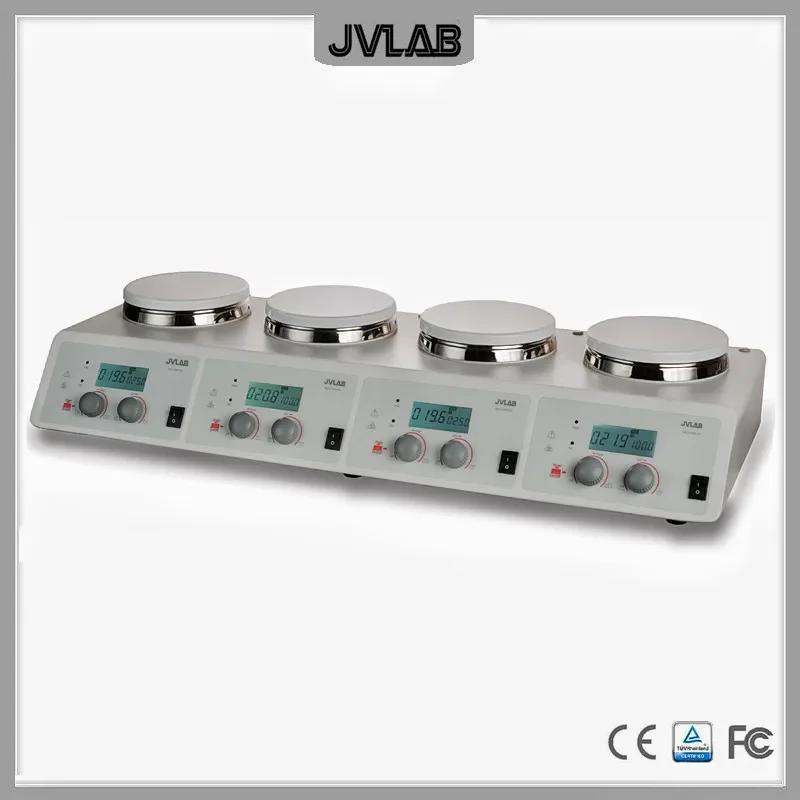

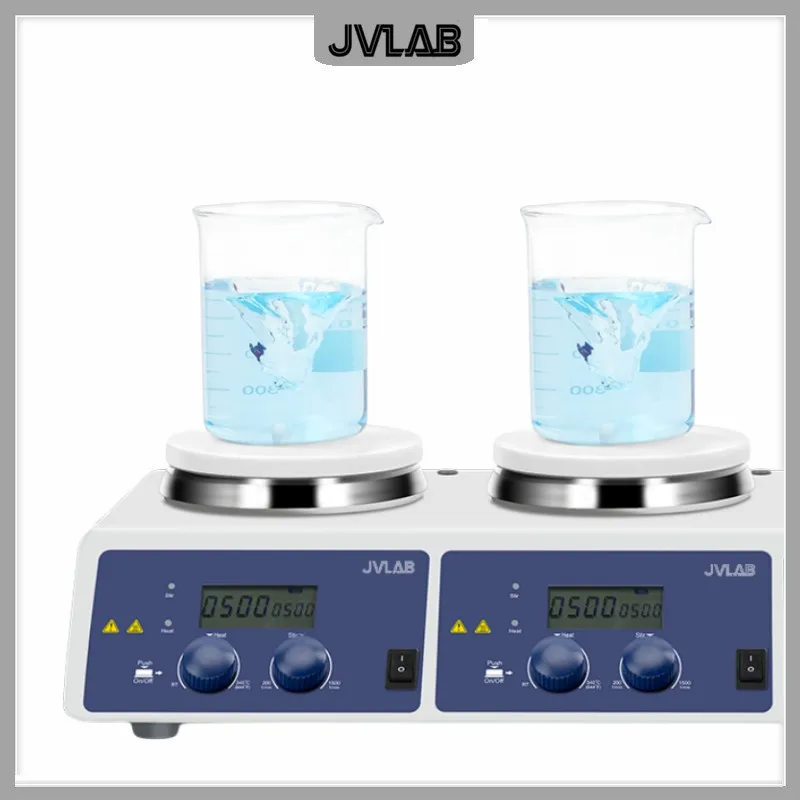

MS-H340-S4
LCD 4-Channel Digital Magnetic Hotplate Stirrer
It is widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc.
Features
* Independent heating and stirring control.
* LCD display shows actual temperatures and speed.
* PID controller ensures a precise and steady heating process, Max. temperature up to 340℃.
* Brushless DC motor enables more powerful speed control.
* External temperature sensor (PT1000) with accuracy at 0.2℃.
* Overheating protection temperature at 420℃.
* Stainless steel work plate with ceramic coating provides good chemical-rsistant performance.
* A wide variety of accessories are available.
Technical Parameters
Work plate Dimension: Φ 135 mm (5 inch )
Plate material: Stainless steel with ceramic coating
Motor type: Brushless DC motor
Motor rating input: 1.8W × 4
Power: 515W × 4
Heating power: 500W × 4
Voltage: 100-120V, 60HZ; 200-240V,50Hz
Stirring positions: 4
Max. stirring quantity of single position [H2O]: 10L
Max. magnetic bar[length]: 40mm
Speed range: 200-1500rpm
Speed display: LCD
Temperature display: LCD
Control accuracy of sensor: ±20rpm
Temperature range: 25-340℃
Over temperature protection: 420℃
Temperature display accuracy: ±0.1℃
External temp. sensor: PT1000 (Accuracy ±0.2℃)
IP protection class: IP21
Dimension[WxDxH]: 698×270×128mm
Weight: 9.5kg
Permissible ambient temperature and humidity: 5-40°C, 80%RH
