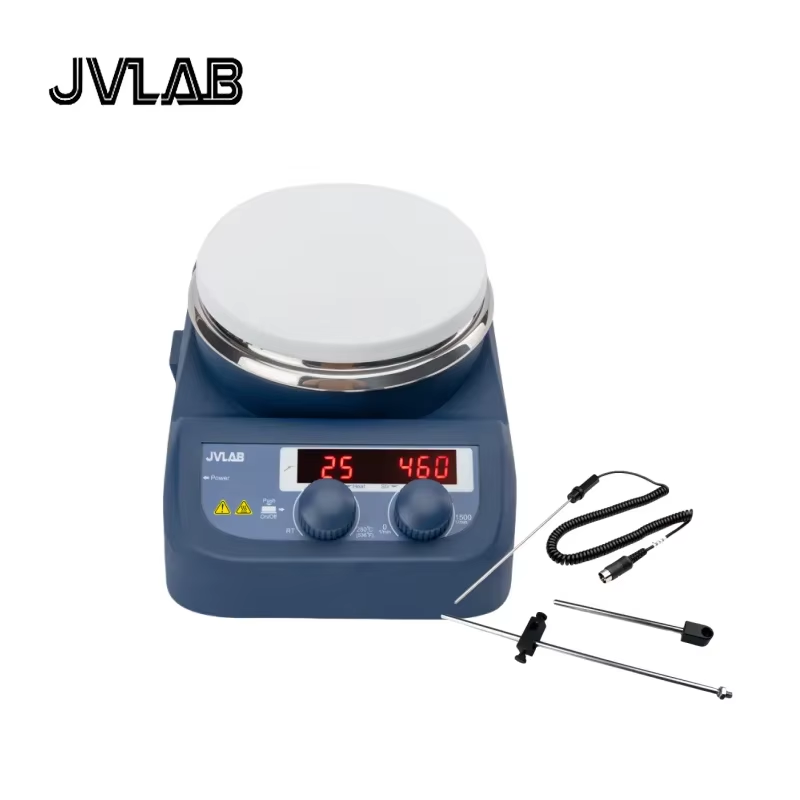

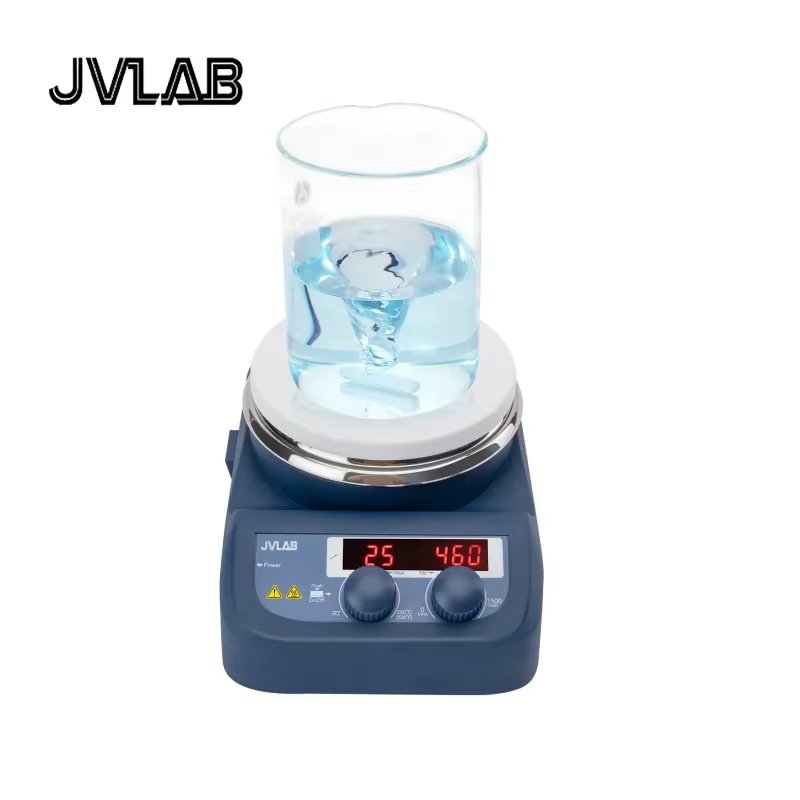

MS-H280-Pro
Double LED Digital Magnetic Hotplate Stirrer
MS-H280-Pro is a perfect device for handling small volume task on daily application, as a low temperature magnetic stirrer with max. temperature at 280°C.
Features
Digital temperature control with max. temperature up to 280°C.
Digital speed control with max. speed up to 1500rpm.

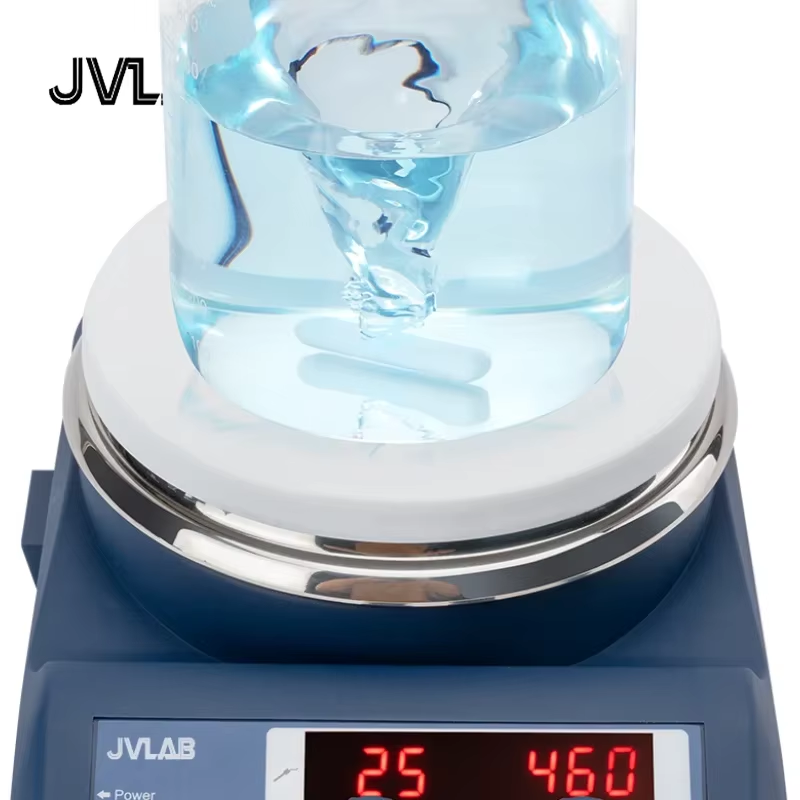

Stainless steel work plate with ceramic coating provides good chemical resistant performance.
External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.5°C.
LED display shows temperature and speed.
The "HOT" warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off.
Main parameter
Work plate Dimension: φ135mm(5 inch)
Work plate material: stainless steel cover with ceramic
Motor type: Brushless DC motor
Motor rating input: 5W
Motor rating output: 3W
Power: 515W
Heating output: 500W
Voltage: 100-120/200-240V, 50/60Hz
Stirring positions: 1
Max. stirring quantity[H2O]: 3L
Max. magnetic bar[length]: 50mm
Speed range: 200-1500rpm
Speed display: LCD
Temperature display: LCD
Speed display resolution: ±1rpm
Heating temperature range: Room temp.-280, increment 1°C
Control accuracy of work plate: ±1°C(<100°C), ±1%(>100°C)
Over heat Protection: 320°C
Temperature display accuracy: ±1°C
External temperature sensor: PT1000 (accuracy ±0.5°C)
"Hot" warning: 50°C
Protection class: IP21

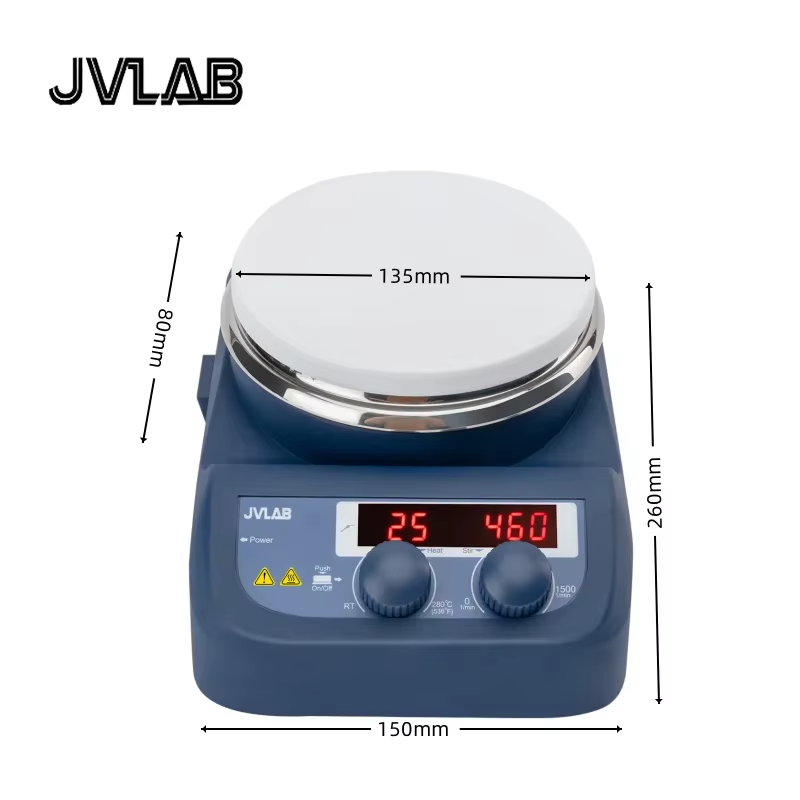

Dimension [W x D x H]: 150×260×80mm
Weight: 1.8kg
Permissible ambient temperature and humidity: 5-40℃ 80%RH
