Nucleic Acid Horizontal Electrophoresis Cell DYCP-31E
Usage
Applicable to identification, separation, preparation of DNA, and measure its molecular weight.
Features
* Made of high quality Polycarbonate, exquisite and durable.
* Transparent, convenient for observation.
* Suitable for PCR (96-well) and 8-channel Pipettor use.
* Power fails when you open the lid for the user's safe.
* Bridge type can save the buffer solution.
* Easy and simple for the end user to use.
* Special gel device for easy and fast gel casting.
* The black band crossing on gel tray makes it's easy to add the sample and observe the gel.
* Anti-high temperature, indeformable.
* Withdrawable electrodes convenient for maintenance.
* Special lid design avoid operation mistakes.
* One gel casting device can cast different size of gel.
Dimensions
(L × W × H): 360×195×135 mm
Gel Diamension (L×W)
200 × 160 mm and 150 × 160 mm
Sample grid
Rus up to 17 or 34 smdples
Comb thickness 1.5mm, 1.0 mm
Weight: About 1.5kg
Buffer volumn: About 1000ml

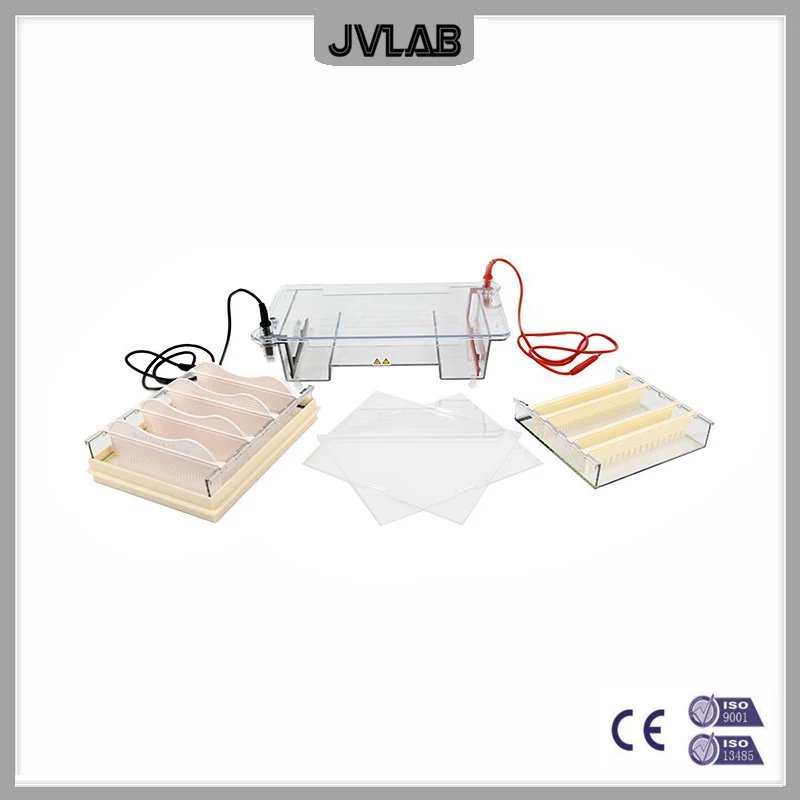

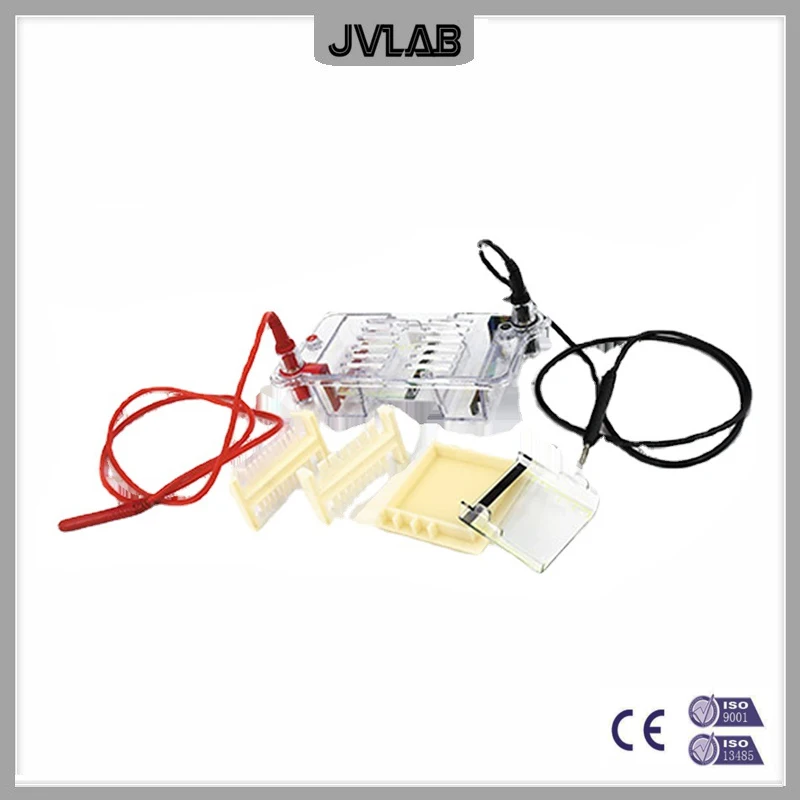

Package listing:
Electrophoresis instrument (main body) * 1 pcs
Electrophoresis instrument (upper cover) * 1 pcs
1.5mm 17-tooth sample grid * 4 pcs
1.5mm 34-tooth sample grid * 4 pcs
Gel maker * 1 pcs
Gel tray ( 200 * 176 mm ) * 1 pcs
Gel tray ( 150 * 176 mm ) * 1 pcs
Supporting rubber plate * 2 pcs
Electrophoresis wire * 1 pair
