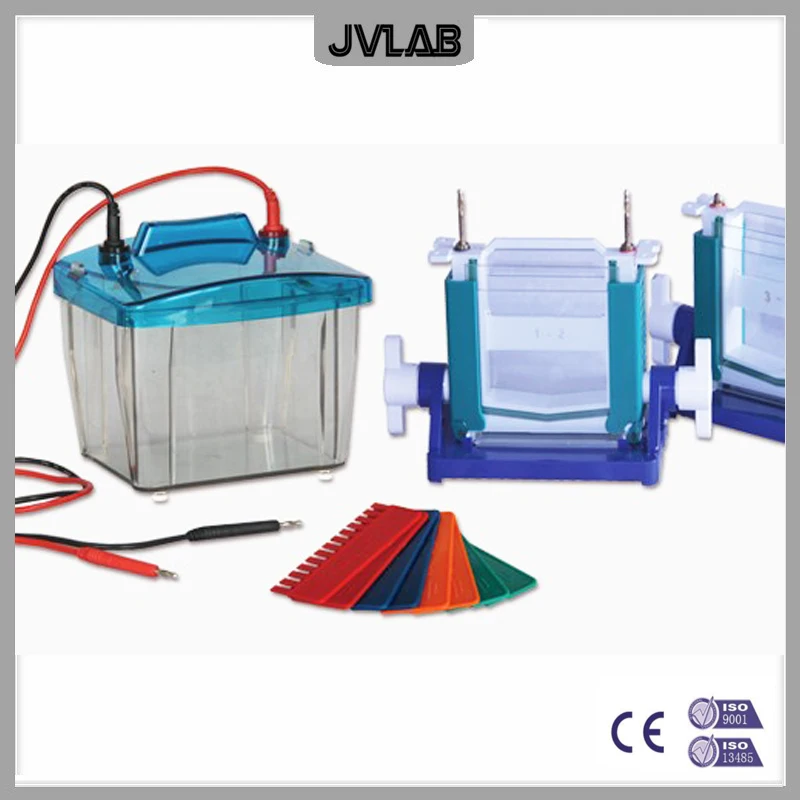

Protein Electrophoresis Cell DYCZ-25E
Use for protein gel electrophoresis.
Features
High throughput: Two electrophoresis instrument bodies can carry 1 to 4 gels.
Glass plate optimization: The edge sealing strip is fixed on the glass plate and removes the concave glass plate, greatly reducing the possibility of damage.
In-situ glue making: the glue chamber is directly installed on the main body of the electrophoresis core, and a group of two glass plates are respectively placed in place and automatically aligned; glue making and running glue are in the same position.
High repeatability: 4 pieces of glue can be poured and run at the same time to ensure that the experimental conditions are highly consistent.
Simple design: simple operation requirements and limit installation design that will never be wrong, high-end products are simplified.
Excellent material precision: all injection molding of high-strength PC material, strong and durable; the tank body is beautiful and transparent, clearly showing the electrophoresis running state.
PAGE gel electrophoresis running time: 25 minutes (constant voltage 300V).
Specifications:
Gel Plate Specifications: 100×85mm.
Continuous working time: ≥24 hours.
Buffer volume: 850 ml (2 gels) / 1200ml (4 gels).
Size(L X W X H): 200×175×160mm
Weight: about 1.5 kg.
Applications:
For protein gel electrophoresis.
