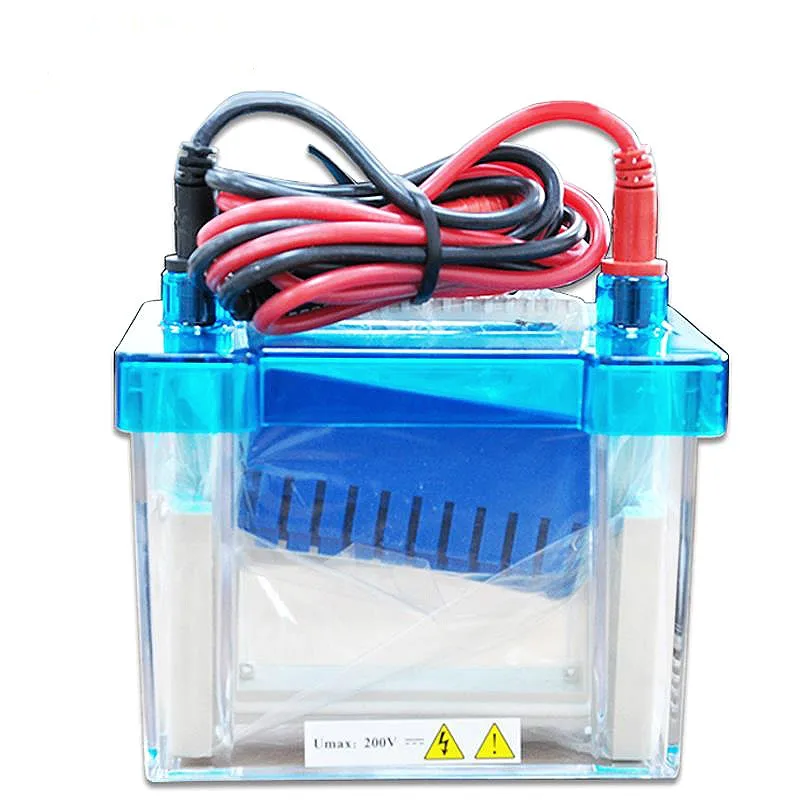

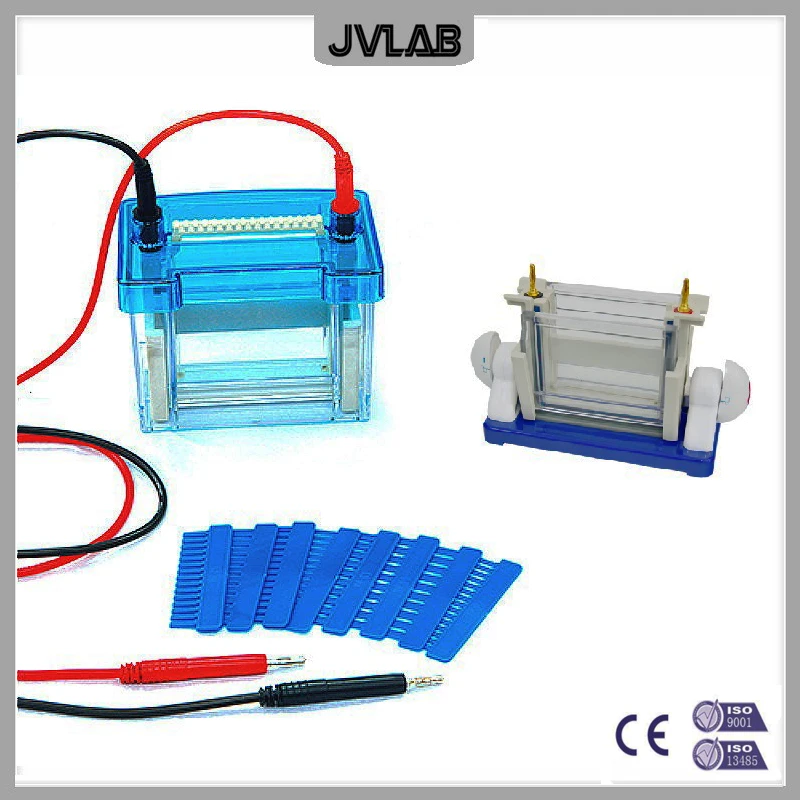

Vertical Electrophoresis Cell DYCZ-24DH
Features
1. There is an original design with a large V-shaped slope at the bottom of the main body, and there are escape channels on both sides, which is conducive to the escape of bubbles during electrophoresis.

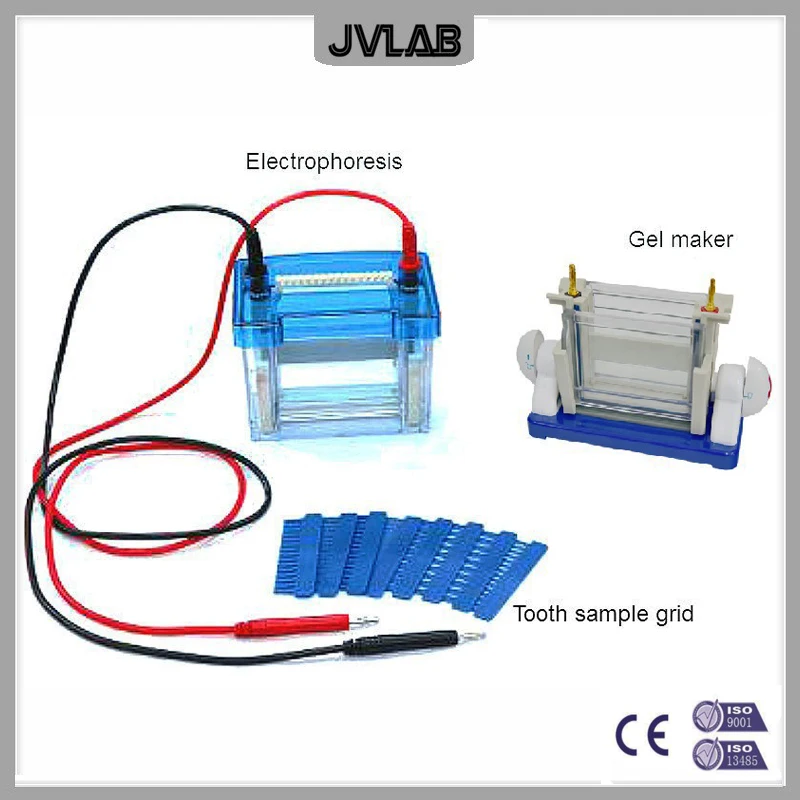

2. The integrated design of glue making and electrophoresis has the function of in-situ glue making. There is no beam on the main body, which is convenient for inserting and pulling out the sample grid and adding samples, and the operation is convenient.
3. The glass edge strips are cured on the concave glass plate to improve the strength of the concave glass plate. The flat and concave glass plates are used together to form a glass component to prevent the glass plate from being crushed.
4. The original design U-shaped groove on the main body is equipped with a mold-shaped U-shaped rubber strip, which is used with the inclined insert plate and flat and concave glass to ensure the sealing effect of the inner groove and avoid liquid leakage.

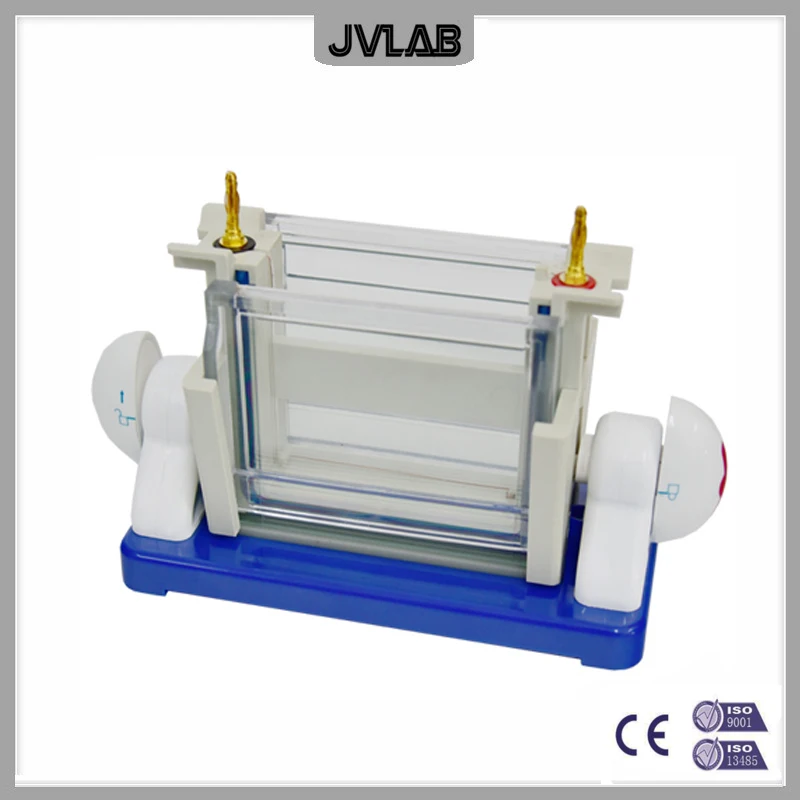

5. Original design, the glue maker adopts an eccentric cam locking structure, which is easy to operate. There is a positioning boss on the top of the main body, and the lifting glass plate is closely matched with the two sealing strips on the glue maker to ensure the sealing effect of the glue chamber and avoid leakage. glue.

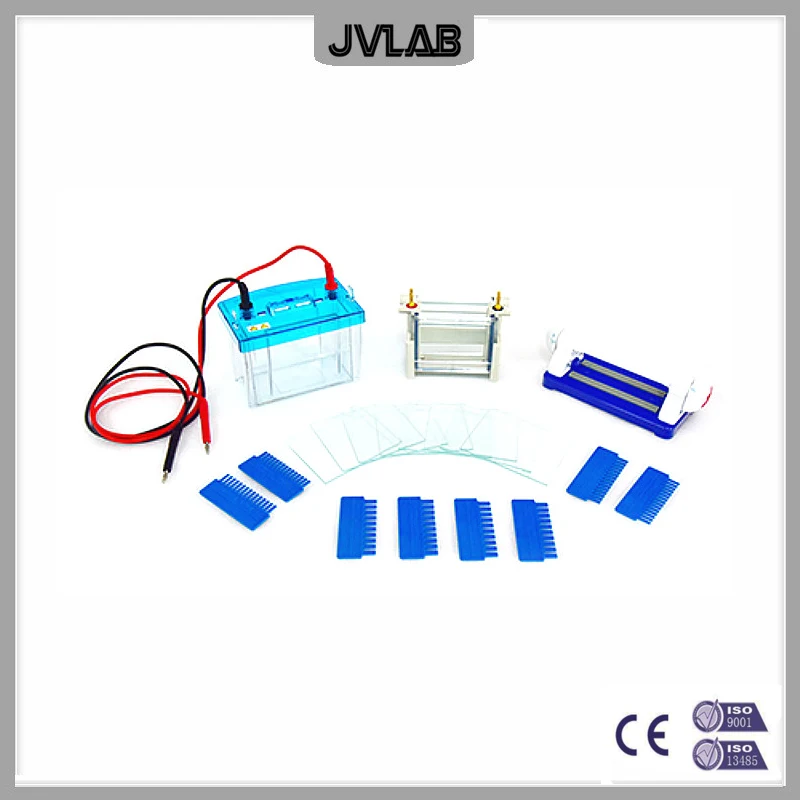

6. The glass plate parameters and sample grid accessories of this product are consistent with the DYCZ-24DN dual vertical electrophoresis instrument.
7. High-purity platinum electrode wire, with good electrical conductivity.
8. Open the cover and cut off the power to protect safety.
Technical parameter
Number of gels: 2 pieces.
Gel thickness: 1mm, 1.5mm
Number of comb teeth: 10 teeth and 15 teeth are available.
Glass size: flat glass plate 10.3×8.5cm, concave glass plate 10.3×8.5cm (adhesive glass edge strip).
Gel size: glue 7.5×8.3cm.
Total buffer: 400mL.
Weight: 1Kg.
Dimensions (mm): (L×W×H) 151×106×160
